Authenticate Azure Workloads to GCP Using Federation

• Scenario: One of my customers was planning to host services on Azure. They have some applications which are present on GCP and some are planned to be hosted on Azure. One of the questions they had was how they could authenticate resources present on GCP from services which are deployed on Azure. They wanted to use GCP permissions along with STS. For example, applications hosted on Azure and connecting to GCP storage bucket. How could they authenticate using GCP RBAC permissions? And similarly they have couple of different GCP services which they wanted to connect to.

• Solution: Workload identity federation service of google can be utilized here as the workload is hosted on Azure and service which is being accessed is present on GCP. Similarly, Azure also provides Workload Identity Federation which can be used when workload is hosted on GCP but services which are being accessed by GCP resources are present on Azure side. In my scenario, the customer was also using Google IAM as their primary identity source, as all their mailboxes and identities were on Google hence utilizing the workload identity federation of google was chosen.

Download the architecture diagram

Create Application in Entra ID

You’ll first need to create an application in Entra ID. We won’t go through this step-by-step; you can find the details using the link below,

https://devtoolhub.com/creating-a-service-principal-in-azure-portal-step-by-step-guide/

However you’ll need to make sure you set the URI of the application, you’ll need to use this on the GCP side.

Assigning Managed identity to Azure resource

You won’t assign any special permissions to this managed identity, this identity is created so that the VM receives the identity to request access token from the Entra ID.

Configure Workload Identity Federation

You’ll need to ensure the required APIs are enabled on the Google project. IAM, Resource Manager, Service Account Credentials, and Security Token Service APIs

Create Workload Identity Pool and Provider

Create the workload identity pool

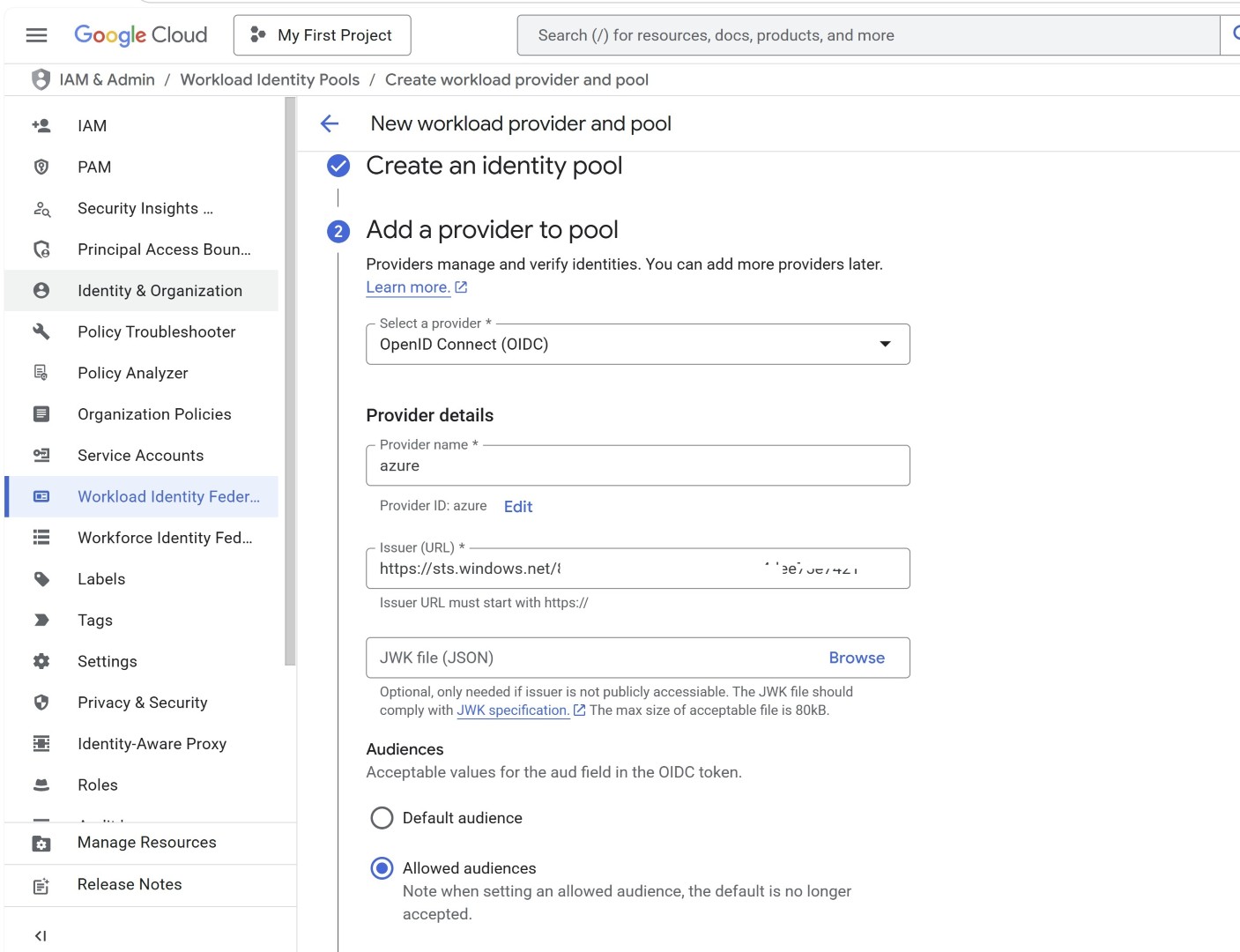

Select OpenID Connect as the provider

For the issuer, you’ll need to add https://sts.windows.net/yourtenantid

Replace your tenant id with your Entra tenant ID.

In the allowed audience you need to enter the URI, which you’ve entered in the step1 and in the attribute mapping you need to enter assertion.sub which is passed from the token. If you need to set a different value then I’ll share the link at the bottom of the blog to learn more.

Create the workload Identity Pool

Allow your external workload to access Google cloud resources

You’ll need to grant permission to the external identity of Azure. This has to be done on each resources once which is being access from Azure.

The principal is constructed in the following format:

principal://iam.googleapis.com/projects/PROJECT_NUMBER/locations/global/workloadIdentityPools/POOL_ID/subject/SUBJECT

This subject refers to the Object ID of the managed identity. If you’ve select something else as subject then you’ll need to pass on that value here.

To keep it simple, since our configuration follows the standard approach then we’ll use the Object ID. Which you can copy by going to the managed identity.

Authenticate using REST API

This method of calling the REST API and collecting the token is just an example, there are other methods via the SDK you can get the same. I’ll share the link at the bottom of the blog.

Let’s first log in to the Azure VM and then call IMDS service to get the access token from Azure.

$SubjectTokenType = "urn:ietf:params:oauth:token-type:jwt"
$SubjectToken = (Invoke-RestMethod `
  -Uri "http://169.254.169.254/metadata/identity/oauth2/token?resource=APP_ID_URI&api-version=2018-02-01" `
  -Headers @{Metadata="true"}).access_token
Write-Host $SubjectToken

here APP_ID_URI is the URI which you set in the step 1.

Now with this subject token you can exchange this with google STS service and get the access token which will be valid to access GCP resources where the permission was granted.

[System.Net.ServicePointManager]::SecurityProtocol = [System.Net.SecurityProtocolType]::Tls12
$StsToken = (Invoke-RestMethod `
    -Method POST `
    -Uri "https://sts.googleapis.com/v1/token" `
    -ContentType "application/json" `
    -Body (@{
        "audience"           = "//iam.googleapis.com/projects/PROJECT_NUMBER/locations/global/workloadIdentityPools/POOL_ID/providers/PROVIDER_ID"
        "grantType"          = "urn:ietf:params:oauth:grant-type:token-exchange"
        "requestedTokenType" = "urn:ietf:params:oauth:token-type:access_token"
        "scope"              = "https://www.googleapis.com/auth/cloud-platform"
        "subjectTokenType"   = $SubjectTokenType
        "subjectToken"       = $SubjectToken
    } | ConvertTo-Json)).access_token
Write-Host $StsToken

Here, the PROJECT_NUMBER is the project that contains the workload identity
POOL_ID : this is the workload identity pool
PROVIDER_ID: This is the provider ID.

You can now use the command below, where we’re passing the access token to access the GCP Storage Bucket.

# Replace these with your values
$BucketName = "azdoctor"

# GCS API endpoint to list objects
$Uri = "https://storage.googleapis.com/storage/v1/b/$BucketName/o"

# Make the GET request with Bearer token
$Response = Invoke-RestMethod -Uri $Uri `
    -Method Get `
    -Headers @{ Authorization = "Bearer $StsToken" }

# Output response (object listing)
$Response.items

Replace the $bucketName with your storage bucket name.

To authenticate and call from the SDK

https://cloud.google.com/iam/docs/workload-identity-federation-with-other-clouds#create-cred-config

More info on subject claims

https://learn.microsoft.com/en-us/entra/identity-platform/access-tokens#claims-in-access-tokens

https://cloud.google.com/iam/docs/workload-identity-federation#mapping

https://cloud.google.com/iam/docs/workload-identity-federation-with-other-clouds#create-cred-config

I hope this guide helps you in performing the cross cloud authentication, this can also be used when you’re planning to build cross cloud DR where in scenarios of partial DR authentication still need to function seamlessly.

Happy Learning!
